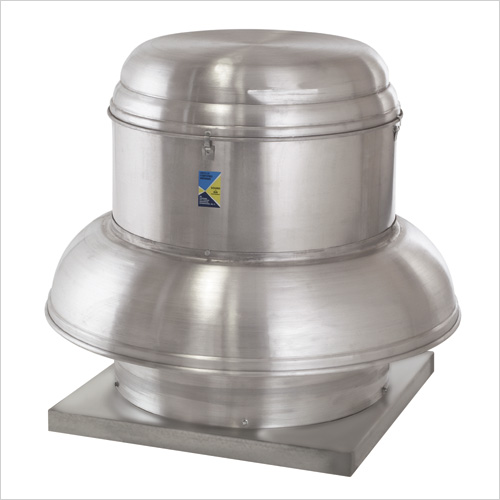

EABDCR - Centrifugal Downblast Fans: Belt Drive



Air Volume: 2 - 20000 CFM
Maximum SP :3.5' wg. standard air density


Features & Benefits
• A wide variety of motors are available to meet specific application needs
• Heavy duty construction, durable and weather resistant
• Non-overloading backward inclined wheels, blades and inlets fabricated from 3003-H14 aluminum
• Wall mount applications, units up to 24" nominal wheel can be wall mounted
• Forced fresh air through the motor compartment cools motor and ensures long motor life
• Quick release latches allow for easy access to motor compartment on 18" thru 36" units
• Standard bird screen
• Variable pitch motor pulley allows for field adjustment and system balancing
• High efficiency combined with low tip speeds result in quiet operation
• Standard emergency disconnect switch

Options
• Gravity Damper
• Motorized Damper
• Wall Mount Sleave
• Roof Curb
• Extra Set of V-Belts

Certifications
Models GBDCR7 thru GBDCR36 are ETL Listed under file number 3049729-002 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113.
