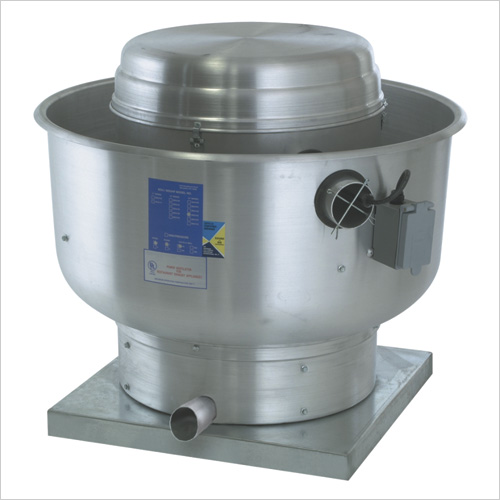

EABDU-HP - Centrifugal Upblast High Pressure Belt Drive Fans

Air Volume: 600 - 1700 CFM
Maximum SP :5' wg. standard air density

Features & Benefits
• A wide variety of motors are available to meet specific application needs
• Heavy duty construction, durable and weather resistant
• Non-overloading backward inclined wheels, blades and inlets fabricated from 3003-H14 aluminum
• Wall mount applications, units up to 24” nominal wheel can be wall mounted up to 2 hp
• Forced fresh air through the motor compartment cools motor and ensures long motor life
• Quick release latches allow for easy access to motor compartment
• Variable pitch motor pulley allows for field adjustment and system balancing
• High efficiency combined with low tip speeds result in quiet operation
• Standard emergency disconnect switch

• Gravity Damper (UL 705 Only)
• Motorized Damper (UL 705 Only)
• Wall Mount Sleeve
• Roof Curb (Vented & Non-Vented)
• Grease Collection Box
• Bird Screen (UL 705 Only)
• Base Hinging Kit or Hinged Sub Base (for NFPA96 compliance)
• Extra Set of V-Belts
• Combination package that includes a supply fan mounted on the same roof curb.

Models EABDU14-HP thru EABDU36-HP are ETL Listed under file numbers 3049729-001 and 3049729-002 and comply with UL705 (electrical) and UL762 Standards and CSA Std C22.2, No 113.
