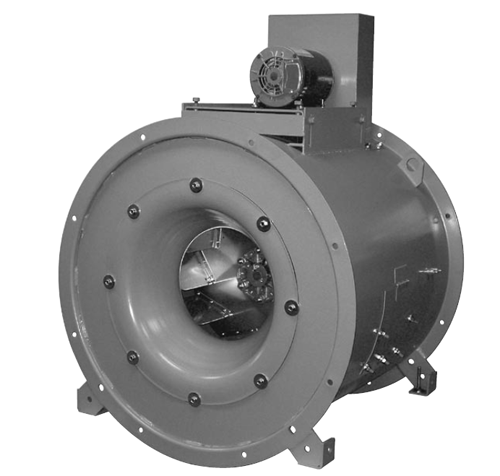

TICF - Tubular Inline Centrifugal Belt Drive



Air Volume: 300 - 3800 CFM
Maximum SP : 2.25" wg. standard air density


Features & Benefits
• Housing is constructed of heavy gauge aluminum, continuously welded
• Companion rings for ease of installation
• Steel Shaft
• Straight Through Air Flow
• Wheels are backward inclined, non-overloading
• Wheels statically and dynamically balanced
• Variable pitch motor allows for field adjustment and system balancing
• Bolted access door for wheel cleaning
• Belt tubes and guards
• Extended lube lines
• 3/4" drain

Options
• Floor Spring Isolators
• Ceiling Vibration Isolators
• Disconnect Switch
• Motorized Damper


Certifications
EconAir certifies that Models TICF105A1CA thru TICF150A1CA are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and 311 and comply with the requirements of the AMCA Certified Rating Program. Models TICF105A1CA thru TICF150A1CA have been certified by ITS. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance. Models TICF105A1CA thru TICF150A1CA are UL Listed under report number 3100959CRT and comply with UL705 and CSA C22.2, No. 113 Standards.
