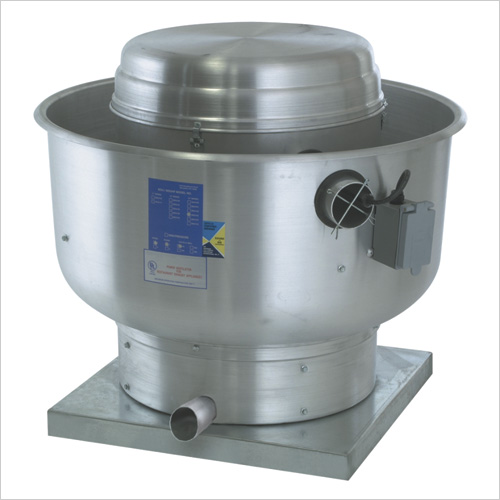

EADU-H - Centrifugal Upblast Direct Drive Fans



Air Volume: 41 - 3489 CFM
Maximum SP :2.48' wg. standard air density


Features & Benefits
• Completely enclosed drive compartment protects motor from airborne contaminants
• Forced fresh air through the motor compartment cools motor and ensures long motor life
• Variable Speed Control on Single Phase Units Only (VFDs required to adjust speed for 3 phase versions)
• Non-overloading backward inclined wheels, blades and inlets fabricated from 3003-H14 aluminum
• All sizes can be wall mounted
• Quick release latches allow for easy access to motor compartment (Size 12 & larger)
• Standard emergency disconnect switch (Size 12 & larger)

Options
• Gravity Damper (UL705 Only)
• Motorized Damper (UL705 Only)
• Wall Mount Sleeve
• Roof Curb (Vented and Non-Vented)
• Grease Collection Box (Size 12 & larger)
• Bird Screen (UL705 Only)
• Base Hinging Kit or Hinged Sub Base (for NFPA96 compliance)
• Combination package that includes a supply fan mounted on the same roof curb

Certifications
Models EADU10-H thru EADU85-H are ETL Listed under file number 3049729-002 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113. Models EADU12-H thru EADU85-H are ETL Listed under file number 3049729-001 and comply with UL762 Standards.
